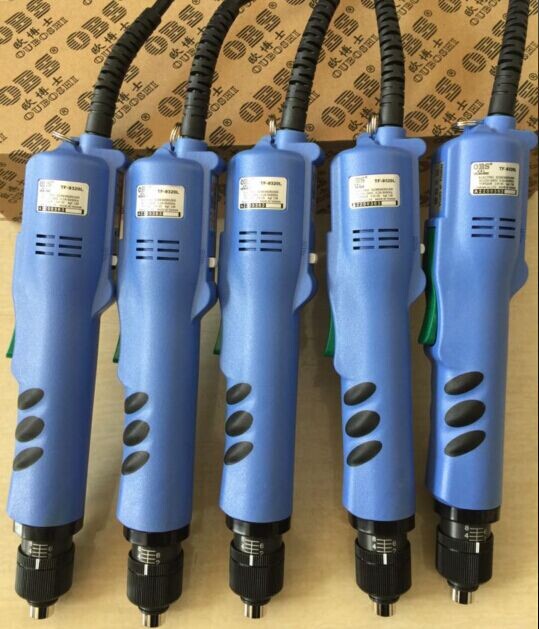

Brushless electric screwdriver
1. Technology-leading industry, direct plug-in no-detector high-precision non-carbon brushed motor multi-function automatic torque electric screwdriver.
2. Do not need with DC power supply, plug and play, very high stability, low temperature rise characteristics, suitable for long time precision operation.
3. Built-in 6-speed control, can be directly selected by the product do not choose 1300rpm / 800rpm / 300rpm or gentle start + 1300rpm / 800rpm / 300rpm, a machine can be applied to a variety of products.
4. Can be connected directly to PLC external control start, suitable for automation equipment (optional models).
5. The highest torque up to 50kgf-cm, electric screwdriver body diameter of only 34.0mm, small size, large output torque.
6. Completely remove carbon brush dust and supplies replacement problems, can be used in clean rooms.
6. (Positive and negative brake start switch) magnet sensor switch, more durable, maintenance-free, zero supplies, the provincial resources.
7. Buffer device integration New clutch, with low impact, high precision features
8 stepless torque adjustment, series models cover a wider range of torque output, sufficient to meet the diverse needs.
9. minimalist excellent appearance feel, long time operation without fatigue

型號(Item NO.)

TF-9325L

TF-9330L

TF-9335L

TF-9338L

 輸入電壓Input

24Vdc

扭力
(Torque Range)

Kgf-cm

3.0~25

5.0~30

10.0~40

15.0~50

Lbf-in

2.6~21.8

4.4~26.1

8.7~34.7

2.6~43.5

N-m

0.29~2.43

0.49~2.91

--

0.29~1.94

空轉速r.p.m.

1000

適用螺絲
(m/m)

機械牙Ø徑
(Machine)

2.6~4.0(mm)
0.10~0.16(in)

3.0~5.0(mm)
0.12~0.20(in)

4.0~5.5(mm)
0.12~0.22(in)

2.6~4.0(mm)
0.10~0.24(in)

自攻牙Ø徑
(Tapping)

2.3~3.5(mm)
0.09~0.14(in)

2.6~4.0(mm)
0.10~0.16(in)

3.0~4.5(mm)
0.10~0.18(in)

2.3~5.0(mm)
0.09~0.20(in)

Plan Of Item

型號(Item NO.)

TF-9216L

TF-9320L

 輸入電壓Input

24Vdc

扭力
(Torque Range)

Kgf-cm

2.0~16

3.0~20

Lbf-in

1.74~13.9

2.6~17.4

N-m

0.02~0.12

0.29~1.94

空轉速r.p.m.

1000

適用螺絲
(m/m)

機械牙Ø徑
(Machine)

2.0~3.5(mm)
0.08~0.16(in)

2.6~4.0(mm)
0.10~0.16(in)

自攻牙Ø徑
(Tapping)

2.0~3.0(mm)
0.08~0.12(in)

2.3~3.5(mm)
0.09~0.14(in)

Plan Of Item
