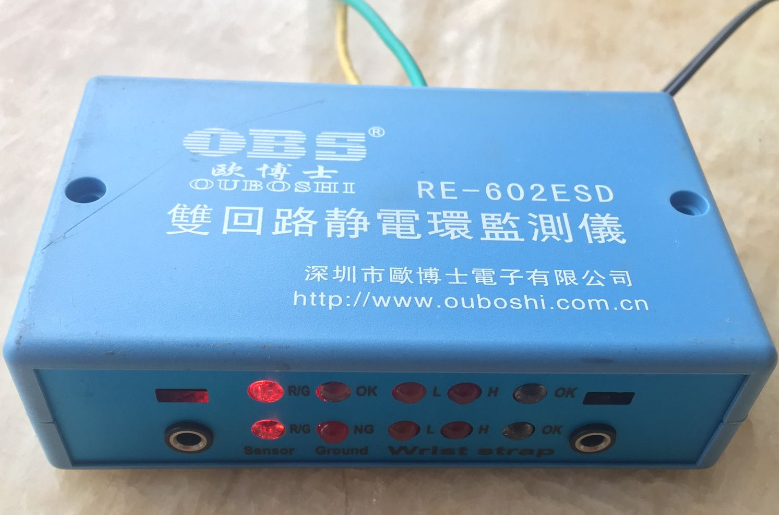

| With photoelectric sensor double loop monitor RE-602ESD |
 |
Dual loop static ring online monitor function
Benefits of Dual Circuits RE-602ESD 1, safe, reliable, when any of the circuit is disconnected, there are static discharge back to the circuit. The probability of two circuits disconnected at the same time is relatively small. 2, supporting the on-line detector, because there are two circuit loops, you can do quite accurate and reliable, high sensitivity. 1, working voltage: DC 12V 2, the working environment: temperature 0 ℃ a 50 ℃, relative humidity 20% a 85% RH 3, Alarm resistance:> 1.25MΩ (1.25 × 10 Ω) The superior value can be adjusted Response time: <20mS 4, color: silver 5, material: aluminum 6, switch control: automatic switch 7, a single station RE-301ESD and duplex RE-302ESD two options. 8, Features: Automatic scanning chip control, scratching the wristband coil will alarm, cancel the manual switch, the total power is turned on, can be used directly, the power cascade can be monitored in real time the working status of the wrist band to ensure that the wrist band system is good And static electricity can be guided away from the wrist band normally, and at the same time, the wrist band in the work can be monitored, the appearance is exquisite, the installation is simple and the use is convenient. Suitable for line work line, controlled by the total power supply is also suitable for use by a separate station controlled by a separate power supply. 2. Can monitor human body resistance below 750K will alarm orange light, above 35M will also give an alarm (red light) |
