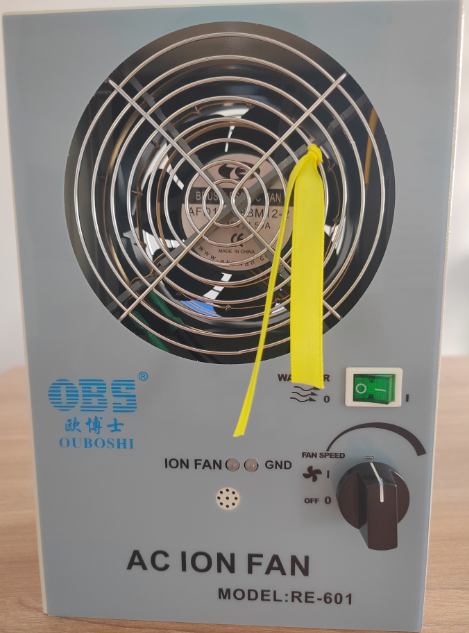

AC ion blower: RE-601


Advantages of Oubo ion blower:
1. Monitor the online status and air volume of the fan, and alarm when abnormality occurs
2. Monitor the resistance of the ion blower to the ground, and an alarm will be issued if it exceeds 4Ω
3. The high-voltage package adopts Japanese technology, which can quickly eliminate static electricity within 3 seconds at a distance of 300-600-900-1200mm, and the balance is about 7V
4. The fan adopts Taiwan double ball bearings, which can have a continuous service life of about 5W hours

型号

RE-601

RE-602

RE-603

RE-604

输入电压

AC220V 50HZ

AC220V 50HZ

AC220V 50HZ

AC220V 50hz

功率

20W

40W

60W

80W

风量

0-95cfm(可调)

2*95CFM

3*95cf

4*95cfm

除静电时间

3s

3s

3s

3s

离子平衡度

±10v

±10v

±10v

±10v

有效面积

40*90cm

110*90cm

150*90cm

200*90cm

外部尺寸

240*160*95mm

540*170*95mm

740*170*95mm

1100*160*95mm

重量

1.8kg

5.4kg

6.5kg

9.5kg


除电测试条件
操作电压:220V-24V测     测试电压:±1000V-±100V      环境温度:23℃±2C
距离 300mm 600mm 900mm
除静电时间 1.0s 2.6s 4.0s
1.3s 3.3s 5.1s
残余电压 <0±10V
