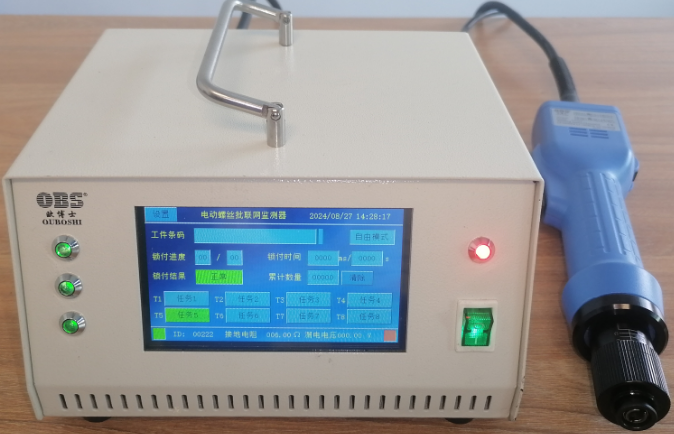

| Intelligent network monitoring electric screwdriver:
Can control up to 6 electric screwdrivers, network monitoring, data collection, abnormal tracing
Function introduction:
1. Intelligent monitoring brushless electric screwdriver has counting electric screwdriver + network monitoring control board + industrial computer + computer software
Composition
2. The intelligent electric screwdriver can control up to 6 electric screwdrivers to form a linkage working mode, and can set the number, locking and sliding teeth
(the number of turns can be set), missed locks and other functions. Locking OK counts, NG does not count, and screw withdrawal does not count
Amount. Daily production capacity can be calculated. Multiple working modes can be set, and the upper computer PC can be used to control the electric screwdriver
3. The resistance from the ground to the screwdriver head of each electric screwdriver can be monitored. If the resistance exceeds the set value, an alarm can be issued or the work can be stopped.
4. The equipment can upload data through 485 or Ethernet, wireless 433, save the PC, and can also connect to the MES system (we provide HTTP general protocol, connect to your company's MES system, can connect to the company's LAN, and query data on other computers
5. The power controller (one to one, up to one to six) and the industrial computer are installed separately, easy to operate, and all Chinese display menus
6. Up to 6 electric screwdrivers form a linkage, and multiple working modes can be set. The second screwdriver can be started only after the first screw is locked, and the third screwdriver can be started only after the second screw is locked, and they work in sequence.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
