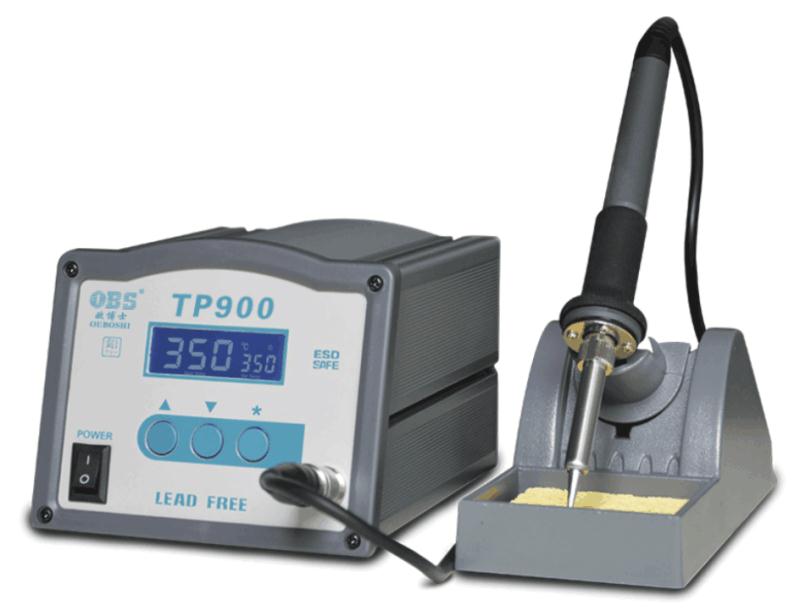

Lead-free soldering station TP900ESD
Features:
* High-frequency eddy current heating, the front of the sensor tip to the tip, the temperature sensor can accurately and quickly changes in temperature.
* Warm and warm quickly. Using 90W high-power heating body, back to warm fast, fast heating, heat compensation quickly, the temperature is accurate and stable,
* New and reliable long-term work can be effectively soldered tip grounding system to ensure that iron head ground leakage voltage and grounding resistance in line with international standards.
* Handle lightweight, comfortable feel, can be set 90W 120W two kinds of power, completely solve the high temperature operation requirements of lead-free solder.

* With backlight digital calibration temperature, the computer automatically temperature, easy to operate and has password protection.
* According to the need to set the temperature upper and lower limits, to achieve temperature alarm.
* Set the welding station sleep time and shutdown time. Particularly suitable for lead-free soldering.



型號

  TP900ESD

TP950ESD

功耗

90W    120W

150W

輸出電壓

交流電220V

交流電220V

溫度穩定

±1(無負載)

±1(無負載)

控溫範圍

50-600

50-600

烙鐵頭對地阻抗

<2Ω

<2Ω

烙鐵頭對地電勢

<2mv

<2mv

尺寸

170L×120W×100Hmm

200L×130W×100Hmm

 重量

1.3Kg

2.2Kg
