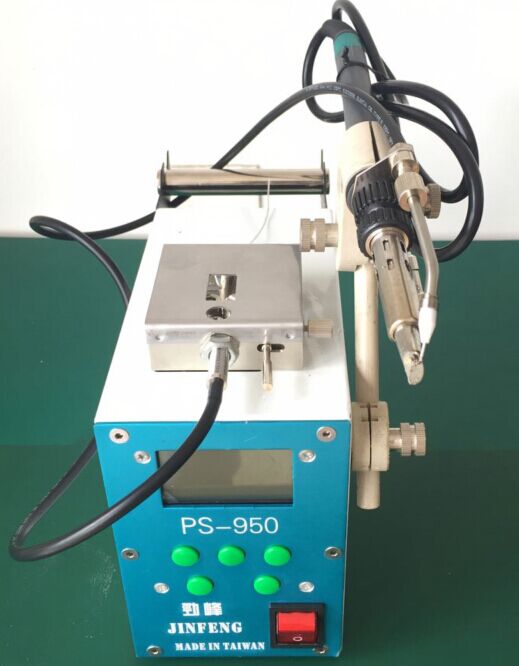

Automatically send tin soldering iron PS-950
90-150W high-power lead-free soldering station
● suitable for large welding spot, with automatic tin and broken tin function
High-power, high temperature recovery speed, intelligent control, digital temperature welding station
★ built-in chip, wisdom temperature welding station.
★ end-to-end thermal conductivity, greatly improving the thermal conductivity and temperature back to warm up to 350 degrees within 15 seconds.
★ Precious metals made of heating element, which greatly improved the temperature compensation capability.
★ patented design of the iron head, even 0201 components can be the perfect welding.
★ automatic cooling, prolong the life of the tip and heating body.
★ Optional preheating plate, tweezers and other tools, is a small repair station.

★ self-calibration function, the user usually a quarter or six months need to calibrate the temperature once.

★ Chinese display, you can set automatic cooling, temperature lock, temperature compensation, temperature calibration and other functions.

★ small size, saving work space.
★ anti-static, protect the precision components.

型号 PS-950焊台
输出 200W 焊笔 ps-950
工作电压 220V 50 Hz ,输出 24V 功率 150W
温度范围 50℃~550℃(当使用KS800以 外焊笔时自动限制为450℃) 电线长度 1.22m
空载温漂 士 2 ℃ 支架
温度准确性 士 2 ℃ 可选烙铁头系列
焊嘴接地电阻 ≤2Ω
焊嘴漏电压 ≤2mV
ESD YES
