| 焊锡机5331R |
 |

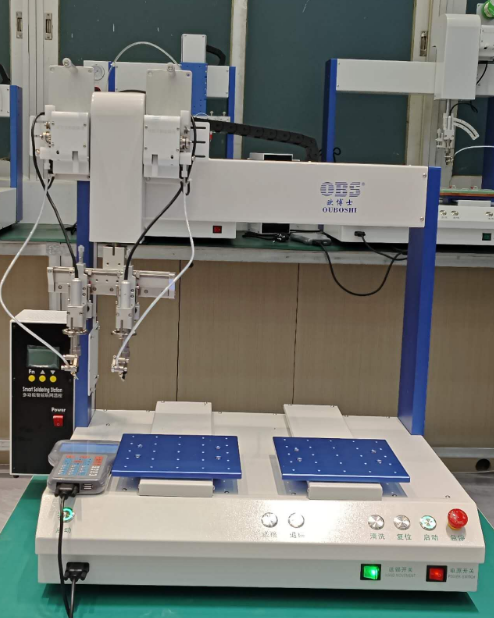

| Platform soldering machine 5331 Purpose: Suitable for the back-end soldering of various electronic products, such as DIP plug-in soldering, terminal soldering, etc. Use 6-axis motion control system to accurately position the solder joints Use high-frequency eddy current constant temperature soldering iron to heat, and melt the tin wire for welding under the automatic feeding of the tin wire and the high temperature of the soldering iron Main functions: •It has the functions of spot welding, drag welding, automatic cleaning, etc. It has the functions of position correction, copying, array, automatic positioning, etc., and the machine operation is simple and fast •Multiple parameter settings during welding process to fully guarantee the welding quality Use 7-inch ultra-large touch screen, simple interface, easy operation Main technical parameters: •Machine size: 570*550*830mm (L*W*H) •Effective stroke: 460*330*100mm (X*Y*Z) •Single-side stroke: 200*330*100mm (X*Y*Z) •Number of platforms: 2 (double Y-axis alternating operation) •Drive mode: 5-axis precision stepper drive •Positioning accuracy: ±0.02mm •Positioning accuracy R axis: ±0.05° •Guide rail: imported slide rail, screw rod •Control system: PLC + 7-inch large touch screen control system •Program storage capacity: 256 groups, 400 points/group •Tin feeding method: editable multi-stage tin feeding method •Temperature control system: pulse high-frequency eddy current constant temperature heating •Temperature control power: 150W / 320W •Communication port: USB, support multi-machine program copy and interoperability •Power supply: 220VAC, 50HZ •Air source: 0.3Mpa •Machine weight: 50kg |
